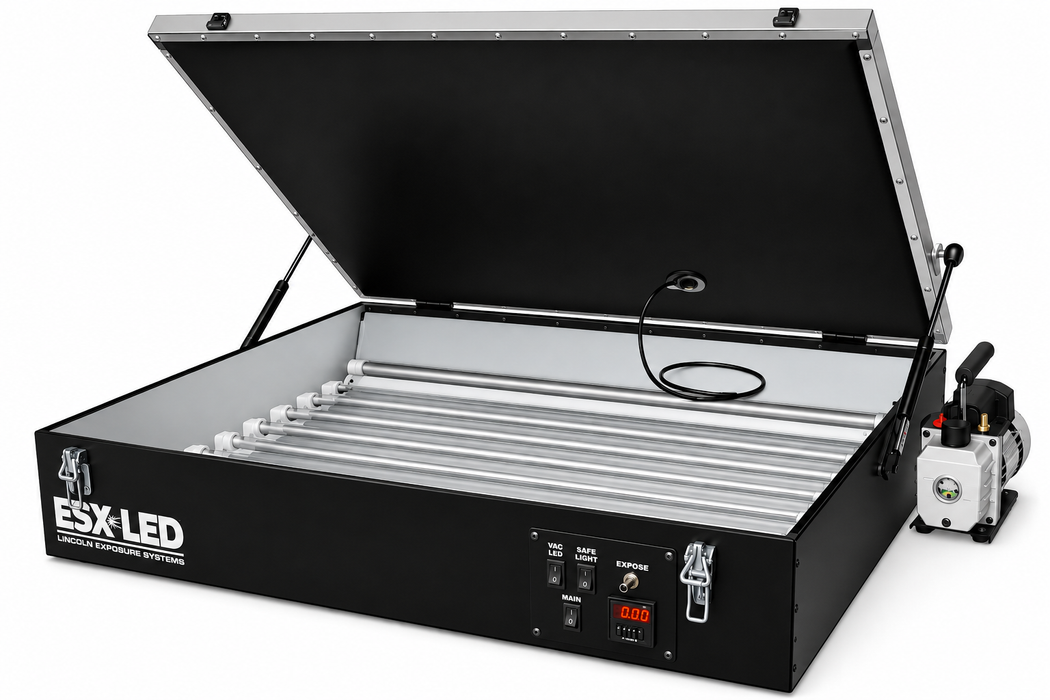

Lincoln ESX-LED Vacuum Exposure Unit 23x31 with Free Gift

Original price $2,349.99 - Original price $2,349.99
Original price
$2,349.99
$2,349.99 - $2,349.99
Current price $2,349.99

FREE GIFT OFFER FOR A LIMITED TIME, WE WILL BE INCLUDING A FREE Pre-Registration Template Transparency Poster and Screen Exposure Calculator with the purchase of any Lincoln ESX-LED™ Exposure Unit ($50 VALUE).

LINCOLN ESX-LED™ SERIES EXPOSURE UNITS

Great screen prints start in the darkroom. It’s time to step up your exposure quality, speed and efficiency today! Lincoln ESX-LED™ exposure units will reduce your setup times and energy costs, provide highspeed exposure times, produce long lasting durable exposed screens, and save your print shop money, all at an affordable entry-level price.

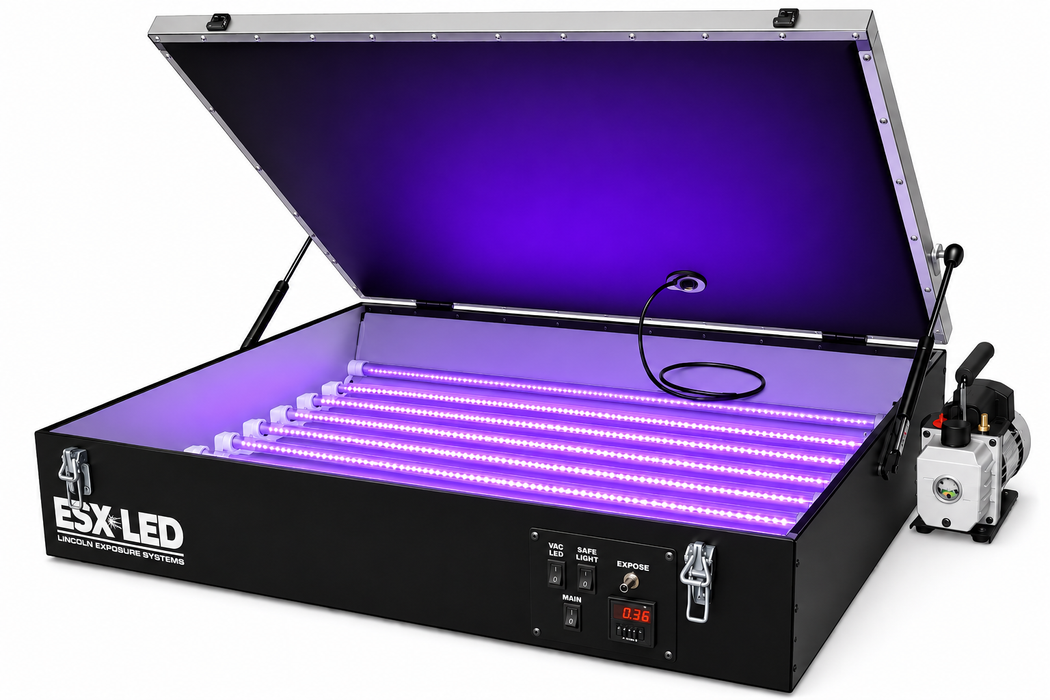

LED TECHNOLOGY: Lincoln ESX-LED™ Series Exposure Units delivers quick exposure times, fine line details, and crisp half tones, faster than ever thanks to ESX-LED™ bulb technology. ESX-LED™ bulbs can last more than 10,000 hours, while having no light degradation, no warm up or cool down times, provide consistent repeatable exposure results, and drastically reduce undercutting and light scatter. ESX-LED™ bulb technology utilizes custom high output LED exposure bulbs manufactured specifically for screen printing.

CONTROL PANEL: Lincoln ESX-LED™ Series Exposure Units feature an easy to use control panel that includes controls for the programmable digital timer with exposure light activation button, safe light inspection bulbs, vacuum pump, and master on / off switch.

EXPOSURE TIMES AND RESULTS: ESX-LED™ bulbs are designed and custom manufactured specifically for screen printing. They omit the perfect UV 405nm wavelength, producing Exposure Times from 10 seconds to 4 minutes. (Exposure time vary depending on emulsion type, thickness, and other variables)

POWER CONSUMPTION: All these features, while only using 20% of the power, florescent tubes or single point units consume, drastically reducing overall operating cost.

BENEFITS

  • ESX-LED™ bulbs output the perfect UV 405nm wavelength.
  • ESX-LED™ bulbs work with all standard emulsions on the screen printing market, such as Diazo, Photopolymers, Dual Cure, LED emulsions, and Capillary Films.
  • Exposes very fine details and crisp halftones.
  • No Light Degradation - Even though the LED bulbs last for years, the light never degrades.  This means that every exposure is done at its highest quality, every time, for a long time!
  • No Warm Up or Cool Down Times – Warm up and cool down times are eliminated because the ESX-LED™ bulbs start and stop immediately, at full power, at the press of a button.
  • ESX-LED™ bulbs life expectancy is over 10,000 hours, drastically reducing maintenance cost.
  • Only uses 20% of the power that florescent tubes or single point units use.
  • The optically clear glass lets the UV light pass through without disruption to the exposure wavelength.
  • ESX-LED™ bulbs expose screens quickly and create a harder, durable, and longer lasting emulsion stencil.
  • Exposure Times from 10 seconds to 4 minutes (Exposure time vary depending on emulsion type and thickness).

FEATURES

  • ESX-LED™ bulbs are designed and custom manufactured specifically for screen printing with the optimal UV 405nm wavelength output.
  • CNC Laser Cut and Bent Steel Components with a Powder Coat Finish.
  • High Quality UL Certified Electrical Components.
  • Works with ANY emulsion.
  • Highly accurate exposure light digital timer.
  • Safelights for lighting up your darkroom, inspecting screens and aligning films.
  • Gas shock operated lid for effortless opening.
  • Easy to understand user manual included.
  • Powerful Vacuum Pump with 1-year full warranty.
  • 3 year limited warranty against manufacture defects* (*excludes glass, vacuum blanket, bulbs, timer)
  • Made in America! Proudly manufactured in Michigan, USA.

PRODUCT SPECS

  • Control Panel: Digital Timer
  • Exposure: Six ESX-LED™: T8 405nm exposure bulbs
  • Safelights:Two, light-safe T8 LED Amber inspection bulbs with dedicated on/off switch
  • UV wattage: 390 watts equiv
  • Max screen size: 23x31 OD or smaller
  • Vacuum Lid System: the flexible neoprene blanket produces the greatest positive contact between the mesh:emulsion:film:glass.
  • Optically clear glass:
  • Dimensions: 39”(W) x 32”(L) x 9”(H)
  • Shipping Weight: 200+ lbs
  • Shipping Method: this unit ships in a crate via Freight Semi Truck. If a liftgate is needed at delivery, please add it to your cart here
  • Master: On/Off power switch
  • Voltage: Standard 110v - 5-15P - 3-prong plug (no special wiring needed)

USE:

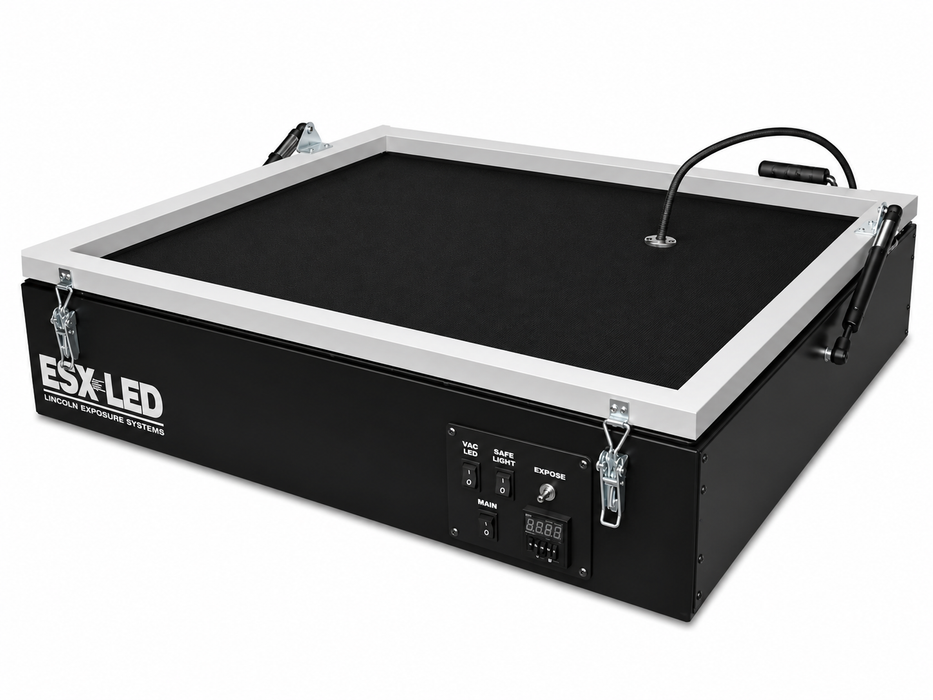

This is a vacuum lid top exposure unit. Its purpose is to create the tightest positive contact between the neoprene blanket-mesh-emulsion-film-glass. Having tight positive contact to the point where the black ink on the film is firmly against the emulsion means that light has difficulty wrapping around the film. The final result — a straight, clean burn with sharp edges and high detail. Vacuum units are the superior tool for capturing those fine lines and tiny details on your exposed screen. The vacuum top has automatic gas shocks to effortlessly raise the lid. The neoprene blanket conforms to the screen when the vacuum pump is activated, drawing down the neoprene blanket to provide consistent positive contact between mesh, emulsion, film, and glass. Then start exposing your screen.
